Sliding Gate Motors for Homes, Complexes & Businesses
Your entrance gate is what stands between you and the outside world. It’s your first line of defense against criminals. Make sure that it fits with the very best. CENTURION’s range of sliding gate motors has been designed to provide the ultimate in security and convenience. Automatic Sliding Gate for a driveway slides back and forth automatically, to allow or prevent individuals, vehicles or objects from entering or exiting your property. These gates are usually powered by an electric motor.
D10 – INDUSTRIAL SLIDING GATE MOTOR
So much thought has been put into every aspect of the CENTURION D10 industrial sliding gate motor that we’ll have to wait for technology to catch up before we can make any improvements! The CENTURION D10 industrial sliding gate motor uses a battery-driven high-torque 24V DC motor, coupled to a robust gearbox to provide an access automation system that is quick, powerful and battery backed up – perfect for industrial and commercial applications where heavy gates are installed. Easy to set up and easy on the eye, the CENTURION D10 industrial sliding gate motor has everything you’d expect from CENTURION. Add an LCD controller that can monitor diagnostics and set any function at the touch of a button and you’ll understand why you won’t need another gate motor for a long time.
MAIN FEATURES:
- Battery backup
- Intelligent speed control
- High duty cycle capability
- Smooth acceleration and deceleration
- Multiple operating features, including Intruder-detection Alarm Modes (a world first)
- Exceptionally easy system setup via LCD user interface
- Onboard CENTURION code-hopping multichannel receiver with selective add and delete
- Integrated ChronoGuard timer functionality (a world first)
- Be alerted of gate activity via SMS or push notification by connecting a CENTURION GSM device
D10 TECHNICAL DATA:
| DESCRIPTION | |
|---|---|
| Input Voltage | 90 – 240V AC +/- 10%, 50Hz [*] |
| Motor Voltage | 24V DC |
| Motor Power Supply | Battery-driven – (standard capacity 2 x 7Ah [**] |
| Push Force – Rated | 30kgf |
| Gate Speed (varies with load) | 22 – 26m/min |
| Duty Cycle – Mains Present | 45% [***] [****] |
| Daily Operations – Max | 750 [***] |
| Gate Mass – Max | 1000kg |
| Onboard Receiver Specification | CENTURION code-hopping, multichannel, 433MHz, capacity – 500 transmitter buttons |
D10 TURBO – HIGH-SPEED INDUSTRIAL SLIDING GATE MOTOR
The lightning-fast CENTURION D10 Turbo high-speed industrial sliding gate motor is the perfect solution for speed freaks to get their fix. Whether you’re just in a hurry, or seriously concerned about your security, there is no time wasted with the D10 Turbo high-speed industrial sliding gate motor at your gate. This beast will move a gate weighing up to 1000kg and, depending on the weight of the gate, can reach speeds of up to 50 meters per minute. It’s our fastest operator yet!
MAIN FEATURES:
- Turbo speed for greater security and convenience
- Battery backup
- Intelligent speed control
- High duty cycle capability
- Multiple operating features, including Intruder-detection Alarm Modes (a world first)
- Exceptionally easy system setup via LCD user interface
- Onboard CENTURION code-hopping multichannel receiver with selective add and delete
- Integrated ChronoGuard timer functionality (a world first)
- Be alerted of gate activity via SMS or push notification by connecting a CENTURION GSM device
D10 TURBO TECHNICAL DATA:
| DESCRIPTION | |
|---|---|
| Input Voltage | 90 – 24V AC, 50Hz [*] |
| Motor Voltage | 24V DC |
| Motor Power Supply | Battery-driven – (standard capacity 2 x 7Ah) [**] |
| Push Force – Rated | 15kgf |
| Gate Speed (varies with load) | 40 – 50m/min |
| Duty Cycle – Mains Present | 25% [***] [****] |
| Daily Operations – Max | 750 [***] |
| Gate Mass – Max | 240-1000kg (depending on speed settings) |
| Onboard Receiver Specification | CENTURION code-hopping, multichannel, 433MHz, capacity – 500 transmitter buttons |

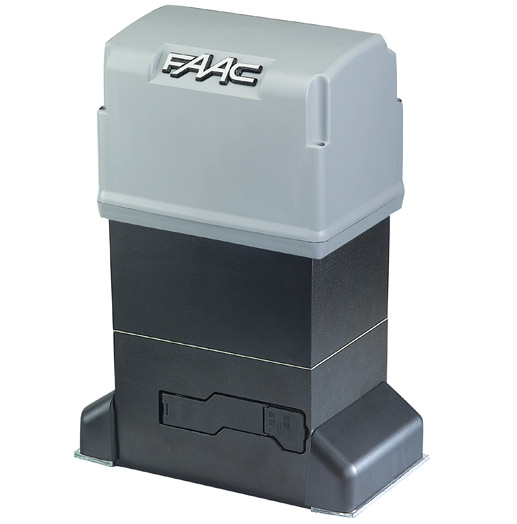

FAAC 844 SLIDING GATE MOTOR
FOR SLIDING GATES UP TO 2200KG
• Ideal for demanding applications
• Electronic equipment can be fitted internally or remotely, allowing maximum flexibility during installation
• Adjustable torque settings
• Reliability and long life due to the internal mechanical components being immersed in a perpetual oil bath
• Models are available for rack and pinion or chain drive.
| Model | 844 R 3PH | |
|---|---|---|
| Power supply voltage | 380-415V~ 3 50/60 Hz | |
| Motor | Three-phase with four poles | |
| Max. power | 950 W | |
| Max. torque | 62 Nm (*) | |
| Max. expressed force | 2500 N (Z12) – 1900 N (Z16) – 1500 N (Z20) (*) | |
| Reduction ratio | 1:30 | |
| Max. leaf width | 40 m (Z16) – 50 m (Z20) | |
| Speed adjustment and motor control | No | |
| Limit switch | Inductive with metal sheet | |
| Pinion | No | |
| Encoder | No | |
| Force adjustment | Twin-disk clutch in oil-bath | |
| Operating ambient temperature | -20°C ÷ +55°C | |
| Thermal protection | 155°C | |
| Protection class | IP44 | |
| Weight | 15 Kg | |
| Type of oil | FAAC HP OIL | |
| Dimensions (LxDxH) | 275 x 191 x 387 mm | |
| Max. leaf weight | 2,200 Kg (Z12) – 1,600 Kg (Z16) | |
| Usage frequency | 70% | |
| Electronic equipment | Not included |

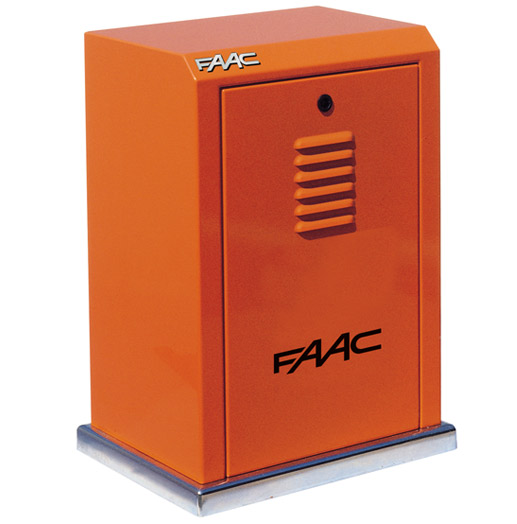

884 MC 3PH 400V Gate Motor (3500KG)
Industrial Capacity
The 884 operator has been manufactured to handle the heaviest commercial or industrial-type gates in the simplest, most convenient way.
Exceptional Support Strength
The industrial design is guaranteed by the exceptional performance characteristics of the gate motor, which allows a frequency of 100% uninterrupted use for gates weighing up to 2000 Kg.
Protection in Movement
A corrosion-proof coating that is highly resistant to atmospheric agents, combined with IP55 protection of the operator, fully enhances the durability and safety for which FAAC electromechanical technology is renowned.
Constant Safety
Anti-crushing safety is ensured by an electronic device which adjusts the drive torque directly.
Maximum Service, Minimum Maintenance
Maintenance has been reduced and made easier with the ability to access the operator without removing the gate. Additionally, electricity consumption is minimized by the system’s outstanding mechanical efficiency.
• Twin-disk clutch in oil-bath
• Breaking device: reduces stop spaces and keeps the gate in the closed position
• Steel housing protected by cataphoresis treatment and polyester paint
| Model | 884 MC 3PH | |
|---|---|---|
| Power supply voltage | 380-415V~ 3 50/60 Hz | |
| Motor | Three-phase with four poles | |
| Max. power | 850 W | |
| Max. torque | 0 ÷ 155 Nm (*) | |
| Max. expressed force | 3.200 N (*) | |
| Reduction ratio | 1:43,2 | |
| Max. leaf width | 42 m | |
| Speed adjustment and motor control | No | |
| Limit switch | Roller lever micro switch | |
| Pinion | No | |
| Encoder | No | |
| Force adjustment | Twin-disk clutch in oil-bath | |
| Operating ambient temperature | -20°C ÷ +55°C | |
| Thermal protection | 155°C | |
| Protection class | IP55 | |
| Weight | 50 Kg | |
| Type of oil | FAAC HP OIL | |
| Dimensions (LxDxH) | 430 x 310 x 586 mm | |
| Max. leaf weight | 3,500 Kg | |
| Use frequency | 100% (up to 2,000 Kg) – 50% (over 2,000 Kg) | |
| Electronic equipment | 884T incorporated |
D5-EVO – DOMESTIC & LIGHT-INDUSTRIAL SLIDING GATE MOTOR
The evolution of the tried and tested D5 500kg gate motor for domestic and light-industrial applications. Incorporating battery backup, you can bank on, potent push force and an intelligent LCD controller for easy setup, not to mention a plethora of features all tailor-made for the ultimate in security and convenience, the CENTURION D5-Evo is the apex predator of gate motors – it simply has no competition and no equal.
MAIN FEATURES:
- Battery backup
We pioneered power failure protection in gate motors. So, in line with all our other operators, the D5-Evo sliding gate motor carries on guarding your entrance even when the lights go out. - All-important speed
The original D5 made a mark for itself being a quick operator opening the gate swiftly when you arrive at your entrance. The D5-Evo is now that little bit faster, opening your average four metre gate in less than 12 seconds, adding even more security and convenience. - Open it the way you like it
Rapid opening but a more tempered closing just in case a loved one is in the way, that’s the sort of sophistication in motor control you can expect from the D5-Evo. Added to this, you can vary the acceleration and deceleration of your gate and make it move so smoothly, it will do so for many years to come. - Pushes like a mule
Such a compact package but such a potent push force, it will reliably move almost any gate weighing up to 500kg for a very long time. - Wide awake all the time!
Incorporating the tried and tested DOSS position control system of its predecessors, the D3 and D5, the CENTURION D5-Evo moves accurately open and closed, stopping in just the right spot each and every time. It’s also wide awake to any obstruction that might cross its path, ensuring safe and sensitive anti-crushing protection. - It will turn heads
The D5-Evo takes on a new and more attractive look compared to the original D5. It’s nice to know that even your trusty gate guard will turn heads. - Plug and play
The LCD-based controller makes child’s play by setting up the gate. It is literally plug and play – the D5-Evo‘s controller does all the thinking for you. - It’s got it all
What a pleasure to click through an almost endless list of really useful features – from multiple Modes of Operation, Gate operating parameters, Pillar Light control with pre-flash, Alarm functions, Positive Close Mode and Real Time Clock and Calendar to enable time-based features – to helpful diagnostic feedback. It just stops short of making coffee! - Forever yours
We know that this compact companion will serve you well – year after year, after year. So just like all other CENTURION products, your beautiful D5-Evo gate motor also comes with an industry-leading 24-month warranty for added peace of mind. - Alarm features (a world first)1
Burglars have some nifty techniques to get into your home. Fortunately, criminals can’t outsmart the CENTURION D5-Evo. An Ambush Alarm will alert your security company if the opening or closing beams are interrupted for a predefined, but adjustable, time. Similarly, a Break-in Alarm will go off if the closing beam outside your house is interrupted. Their gig is up!
1. Requires gate safety beams to be installed - Operate wirelessly, thanks to CENTURION2
Besides its code-hopping technology offering the highest-level remote-control security, this multichannel and multi-user CENTURION onboard receiver allows for a multi-button remote to operate any combination of the system inputs such as Gate trigger, Pedestrian opening, Holiday Lockout, etc. It stores up to 500 transmitter buttons, and amongst other access control features, it provides the ability to selectively add and delete transmitter buttons saved into its memory.
2. CENTURION code-hopping - ChronoGuard timer technology (a world first)
The D5-Evo is so advanced that it no longer needs humans to look after it. With CENTURION’s ChronoGuard timer technology onboard, many of the D5-Evo‘s features can be set to operate automatically or be time-barred at any time you choose. It’s built-in Real Time Clock and Calendar allows you to set up different exclusions, which can cater for public holidays, special Time-periods, etc.
| Description | |
|---|---|
| Input voltage | 90 – 240V AC +/-10%, 50Hz |
| Motor voltage | 12V DC |
| Motor power supply | Battery-driven – 2A charger |
| Push force – rated | 17kgf |
| Gate speed at push force < 5kgf | 22m/min |
| Gate speed at rated push force | 18m/min |
| Duty cycle – mains present | 50% | 150 Max Operations per day |
| Duty cycle – mains present | 20% | 55 Max Operations per day |
| Gate mass – maximum | 500kg |
| Onboard receiver type | CENTURION code-hopping,multichannel, 433MHz, capacity – 500 transmitter buttons |
D5 SMART. The intelligent choice
Our brand essence is “making your life easier” and, with the D5 SMART, we believe that we have created a product that is the very embodiment of this mission statement.
Taking what we’ve learned through more than 30 years of being the market leader in access automation, we are bringing you a solution that gives you everything from intelligent reporting to easy mobile-based setup and operation.
With unsurpassed convenience and control at your fingertips, you’ll love using the D5 SMART.
Main features
Speed
- The perfect balance between security and safety with a top speed of up to 36 meters per minute
Diagnostics and logging
- Makes your life easier with advanced diagnostic feedback
- Intelligent logging and reporting
Wireless user interface
- Wireless and effortless – easy setup and configuration from your smartphone
SMART hardware
- Provides the best experience for installers and end-users alike with easy access to mounting hardware and optimized cable management for the neatest installation around
All the most innovative technological features
- Onboard multichannel NOVA receiver with 1500 button memory
- Wireless and effortless – easy setup and configuration from your smartphone
- 24V system capable of performing more operations and offering extended battery backup and power failure autonomy
- New and improved theft-resistant cage with a patented design offering outstanding security and peace of mind
- Vibration sensor that can be connected to a third-party device to notify you in the event that the gate motor is being tampered with
- Intelligent battery charger with onboard diagnostics and SMART communication between the charger and the controller
- Improved position control system incorporating hall effect technology – highly resistant to interference
- Individually-configurable inputs and outputs
- Convenient and intuitive single-action manual release
| Technical Data | D5-SMART | |
|---|---|---|
| Input voltage 1 | 90V – 240V AC +/-10% @ 50Hz | |
| Current consumption (Mains) | 200mA | |
| Battery charger current output | 1.3A | |
| Maximum number of operations per day | 150 | |
| Duty cycle – Mains present 2,3 | 50% | |
| Motor voltage | 24V DC | |
| Motor power supply 5 | Battery-driven (Standard Capacity – 2x12V) | |
| Current consumption (motor at rated load) | 13A | |
| Input / Output sink currents (Max accessory current draw) | ||
| I/O 1-4 | 100mA (12/24V) | |
| I/O 5 and 6 | 3A (12/24V) 10sec Pulse | |
| Motor push force – starting | 30kgf | |
| Motor push force – rated | 17kgf | |
| Gate mass – maximum | 500kg | |
| Gate length – maximum | 100m | |
| Gate speed (varies with load)4 | 35m/min @ 17kgf | |
| Manual Override | Lockable with key release | |
| Operations in standby with 2 x 7Ah (28W) battery | ||
| Half day 5, 6 | 125 | |
| Full day 5, 6 | 120 | |
| Collision Sensing | Electronic | |
| Operating temperature range | -15°C to +50°C | |
| On-board receiver type | Code-hopping multichannel receiver with selective add and delete | |
| Receiver code storage capacity 7 | 1500 Remotes | |
| Receiver frequency | 433.92MHz | |
| Degree of protection | IP55 | |
| Mass of unit packed (with standard kit, but excl. rack and battery) | 9.1kg | |
| Packaging dimensions (with standard kit, but excl. rack and battery) | 325mm wide x 244mm deep x 445mm high |
1. Can operate off a solar supply, consult your local dealer for assistance
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending
on the requirements of individual installations
5. Can increase battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used
D2 TURBO AND D2 TURBO LOW-VOLTAGE DOMESTIC SLIDING GATE OPERATOR
Prepare for your sliding gate to be turbocharged. The D2 Turbo is a high-speed, cost-effective operator for domestic gates weighing up to 250kg, with a maximum speed of 400 millimeters per second and powerful peak push force rated at 9kgf. This operator is exceptionally quick and easy to install and set up, with all settings easily configurable via two dials on the controller. With loads of features, the D2 Turbo is the complete motor for a standard, domestic four-meter gate. The D2 Turbo Low-Voltage operator is designed specifically for sites with no mains at the gate to reduce installation costs while delivering outstanding reliability, comprehensive functionality and selectable high-security or standard speeds. With the D2 Turbo Low-Voltage, there is no need for costly high-voltage cable runs and expensive isolators. Simply use a low-voltage step-down transformer or solar power supply. Now that’s fast! Sleek, strong, stylish – and even eco-conscious – this CENTURION has it all.
MAIN FEATURES:
- Turbo speed for greater security and convenience.
- Very easy to install and set up, saving you time and money.
- Reliable battery backup.
- Dedicated Solar Mode – allows you to disable the Mains Fail buzzer when using solar power.
- Onboard multichannel CENTURION receiver.
- Multiple Modes of Operation.
- Adaptive Collision Sensing.
- Modular components clip together for easy maintenance.
- Lockable, easy Manual Override.
- Now with robust steel pinion – can be easily retro-fitted and ensures reliable operation.
D2 TURBO TECHNICAL DATA:
| DESCRIPTION | ||
|---|---|---|
| Technical Data | D2 Turbo | D2 Turbo Low-voltage |
| Input voltage 1 | 90V– 240V AC ±10%, 50Hz | 10V – 20V AC ±10%, 50Hz; 10V – 28V DC |
| Motor voltage | 12V DC | 12V DC 3 |
| Motor power supply 4 | Battery-driven (standard capacity – 12V 5Ah) | Battery-driven (standard capacity – 12V 5Ah) |
| Current consumption (mains) | Intergral with controller 1A @ 13.7V +/- 1% | Intergral with controller 1A @ 13.7V +/- 1% (Input voltage > 15V AC) |
| Current consumption (motor at rated load) | 8/12A | 8/12A |
| Current consumption (quiescent load) | 95mA | 95mA |
| Operator push force | ||
| Starting | 18kgf | 18kgf |
| Rated | 8kgf | 8kgf |
| Gate mass – maximum | 250kg | 250kg |
| Gate length – maximum | 20m | 20m |
| Gate speed – m/min 6 | 22 – 26m/min | 22 – 26m/min |
| Gate speed – mm/sec | 367 – 433mm/sec | 367 – 433mm/sec |
| Drive Pinion | 17T Module 4 | 17T Module 4 |
| Maximum daily cycle | 10 cycles/day | 10 cycles/day |
| Design life | 30 000 cycles | 30 000 cycles |
| Operations in standby with standard battery 4, 5 | ||
| Half day | 60 cycles | 60 cycles |
| Full day | 40 cycles | 40 cycles |
| Collision sensing | Electronic | Electronic |
| Operating temperature | -15°C to +50°C | -15°C to +50°C |
| Degree of protection | IP54 | IP54 |
| Controller incorporated | D2 Controller_H | D2 Controller_L |
| Onboard receiver type | NOVA code-hopping onboard, multichannel | NOVA code-hopping onboard, multichannel |
| Receiver frequency | 433.92MHz | 433.92MHz |
| Receiver code storage capacity | 32 transmitter buttons | 32 transmitter buttons |
| Mass of unit packed | 5kg | 5kg |
| Packaging dimensions | Length: 255mm x Width: 188mm x Height: 333mm | Length: 255mm x Width: 188mm x Height: 333mm |
